Fully digital electronics (uses AD7745IC)
- USB connection (no power supply required)
- Measures capacitance directly
- 24 bit resolution
- Get 10% accurate results in a single lab period.
- Compact unit uses a 25 micron diameter, adjustable length, tungsten wire.
- Short oscillation periods of 2-4 minutes.
- No more optical lever jitters due to revolutionary SDC sensor technology.
- Software to record data included with each unit
You can now eliminate most of the frustrations and aggravation in performing this historic experiment with this new cutting edge technology developed and patented by Dr. Randall Peters. (Click here for a detailed explanation of these unique sensors.) The use of this simple device to measure the gravitational constant G (in a single lab period!) will impress your students in a way no textbook or even video can match.

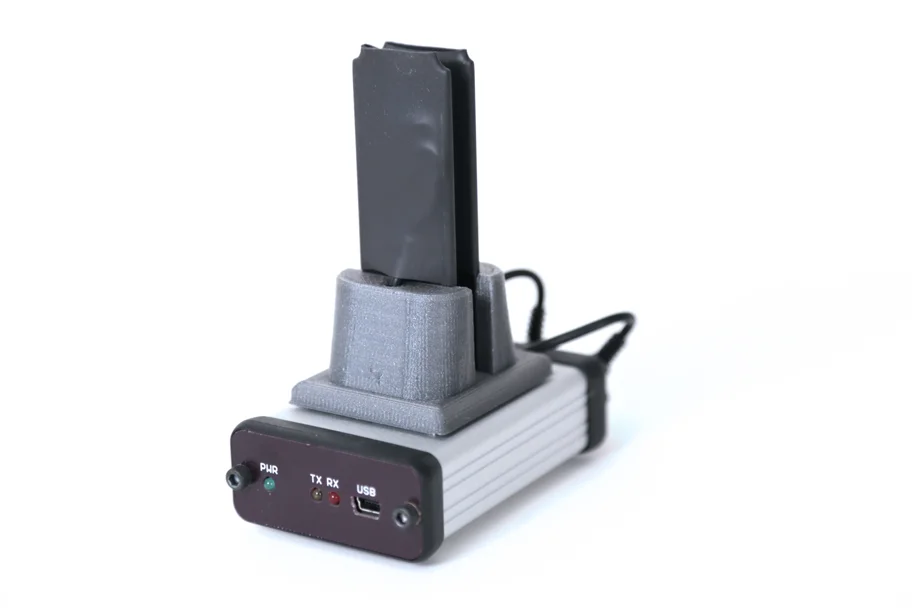

This sensor enables accurate measurement of the position of the Kater Pendulum. From this data, the period is measured with high accuracy. The pendulum sensor is remarkably easy to set up and use, resulting in a quicker overall experiment than with a photogate timer.
Consists of the Kater Pendulum and the TEL-611-0103 Smart Timer. Supply two lab stands and you will have everything you need to measure g.

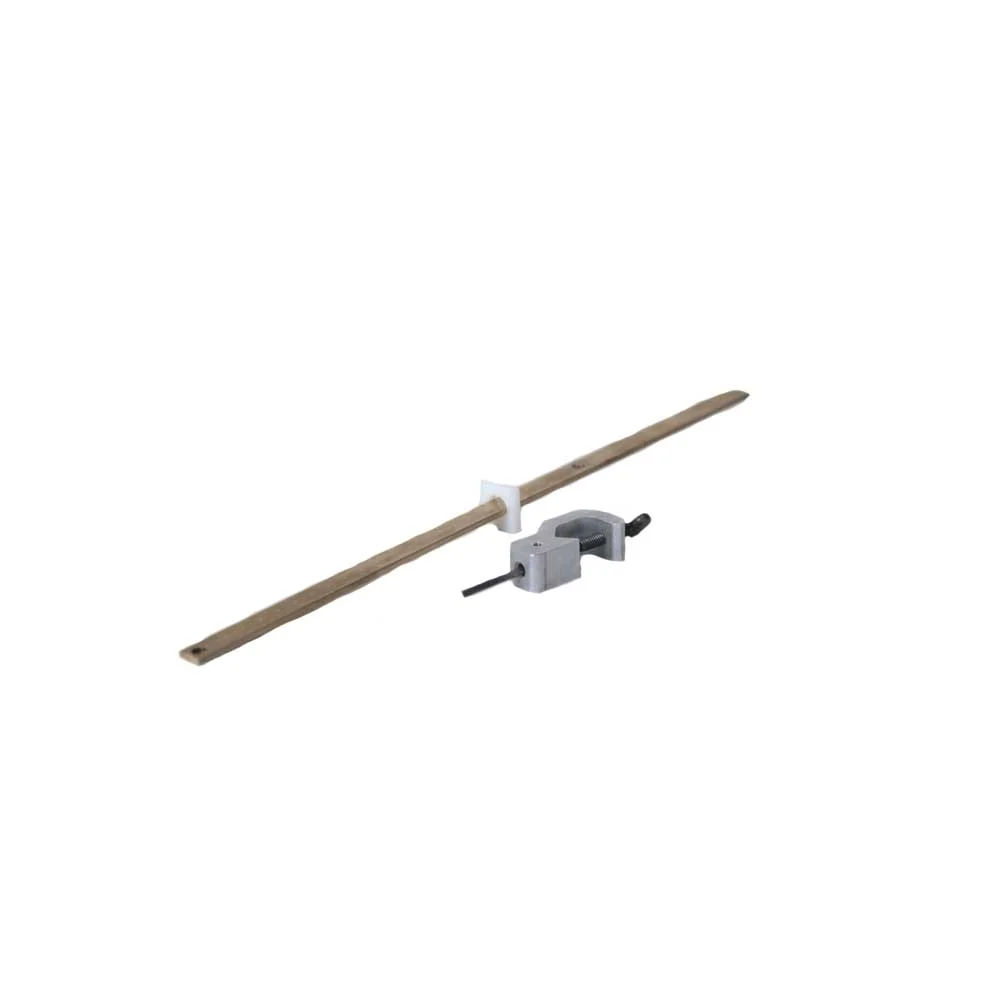

Kater Precision Pendulum
-Pendulum Rotating about axis '2'
-Measure g to a few parts per thousand in less than ten minutes.
-Measure g to a few parts in ten thousand in one lab period.
-Take data with a photogate or a stopwatch.
Finally a Kater Pendulum has been designed to allow a measurement of g to within a few parts per thousand in about 10 minutes. In addition, a very precise measurement of g (to within a few parts in ten thousand) can be performed in a single lab period.
The axes of rotation are by means of a “knife edge” which is inserted through one or the other of two holes; whose placement in the pendulum were carefully chosen. Although period measurements may be made with a stopwatch, a photogate is preferred to: (i) eliminate large reaction time errors, and (ii) insure that data is collected in an amplitude regime that is essentially isochronous.
Gliders and springs on Air Tracks make a beautiful harmonic oscillator with sharp resonances. The simplest resonator is a single Glider and two springs and has one resonant frequency. Adding a second Glider and spring adds another degree of freedom and a second resonance. The system has an additional resonance for each Glider added. The kit is supplied with five 150 g Gliders, six 2.5 cm long stainless steel springs, and five ceramic magnets for damping random motion. They provide a comprehensive course in vibration theory when set up on an Air Track. Including manual. Requires an air track (such as our model TEL-210), sold separately. Photogate timer and air track not included, both sold separately.
Here’s a great value in a student air track. Study one-dimensional motion, collisions and the conservation of momentum at low friction. Our sturdy triangular aluminum track is lightweight yet durable. 1.5 meters in length, it has a smooth surface and high linearity due to precision machining. One row of 0.95 mm diameter holes on each side. Re-engineered spring bumpers have significantly lower friction loss than previous design. Updated gliders have a lower center of mass. Accessories are less massive to improve accuracy. Requires TEL-218 Air Source (not included).
Study one-dimensional motion, collisions and the conservation of momentum at low friction. Our sturdy triangular aluminum track is lightweight yet durable. 2 meters in length, it has a smooth surface and high linearity due to precision machining. Two rows of 0.9 mm diameter holes on each side. Re-engineered spring bumpers have significantly lower friction loss than previous design. Updated gliders have a lower center of mass. Accessories are less massive to improve accuracy. Requires TEL-218 Air Source (not included).
Replacement Tungsten wire for Cavendish Balance.
25’ of 25 micron diameter tungsten wire for Cavendish Balance.

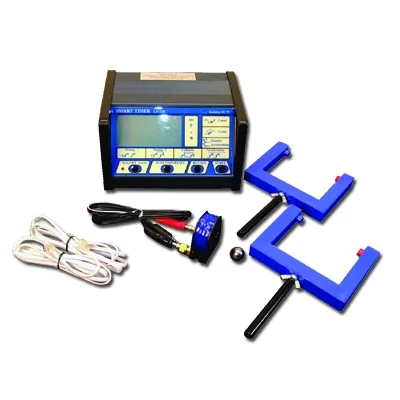

Smart Timer, Tabletop Normal Display, with 2 Photogates, Freefall and Power Supply.
Why pay more when this accurate and versatile timer does far more for far less? You can measure the time interval between two photogates, measure the time it takes to pass through one photogate, measure acceleration of a released ball, determine the acceleration due to gravity (with a picket fence; not included), determine elastic and inelastic collision times, calculate cycles, determine the frequency of a rotating object, determine the period of a pendulum, and count time with great accuracy. Up to 20 data points can be stored in memory for instant recall, allowing you to watch the experiment as it happens and perform calculations after the fact. Includes a magnetic ball drop. Rechargeable. May be used with or without the adapter.
The Air Source has superior sound absorbing characteristics due to three thick foam sound absorbers in the air input. The straight through air path avoids pressure loss and unnecessary turbulence. The Air Source operates one Intermediate Air Track, or two Basic Air Tracks. A two-meter hose is included with each Air Source. The Air Source can supply longer Tracks as well.
A 2 m flexible air hose with end fitting to attach to the Air Source and either the Basic or Two Meter Air Track. This hose is required if connecting two tracks to a single Air Source.
100g glider for Air Tracks in gold. These float above the Air Track.
200g glider for Air Tracks in black. These float above the Air Tracks.
300g glider for Air Tracks in red. These float above the Air Track.
Set of 8 riser blocks that turns the Air Track into an inclined plane.
TEL-220A & TEL-220B
Packages of 10 - 2.5cm or 5.0cm springs used to join gliders together or to the end of the track.
Disrupts the beam of a photogate timer for measuring velocity.
Used to launch gliders with repeatable force.
Used for elastic collisions.
Used for inelastic collisions.
Allow elastic collisions.
Used to increase the mass of the gliders.
Low friction pulley replacement.
Used with thread and pulley. Includes four 5g hanging weights.
Used to connect springs to gliders.
Used for attaching accessories to the gliders.
Holds photogate timers. The photogate arms are attached to the Air Track using the same thumbscrews used to hold the accessories to the gliders.
Universal Spark Generator
The Spark Generator produces high voltage pulses at variable frequencies. The precisely timed sparks leave a permanent series of dots, like paw prints in the snow. This recording method is useful for dynamics experiments, since the record is permanent and there is no frictional drag on the moving body.
Spark Wire Kit
For use with the TEL-231 Universal Spark Generator
Spark Paper Roll
For use with the TEL-231 Universal Spark Generator
